Lab1: The Artemis board and Bluetooth

Lab 1B

Goals

The objective of Lab 1B is to establish reliable Bluetooth Low Energy (BLE) communication between the computer and the Artemis board. Using a Jupyter/Python interface as the BLE central, the computer sends commands to the Artemis and receives responses through BLE characteristics. This lab also sets up a reusable framework for transmitting data from the Artemis back to the computer.

Prelab

1. BLE Background.

   I reviewed the basic BLE workflow used in this lab, focusing on the central–peripheral connection model and the use of GATT services/characteristics for data exchange. This provides the foundation for sending commands from the computer to the Artemis board and receiving responses via notifications.

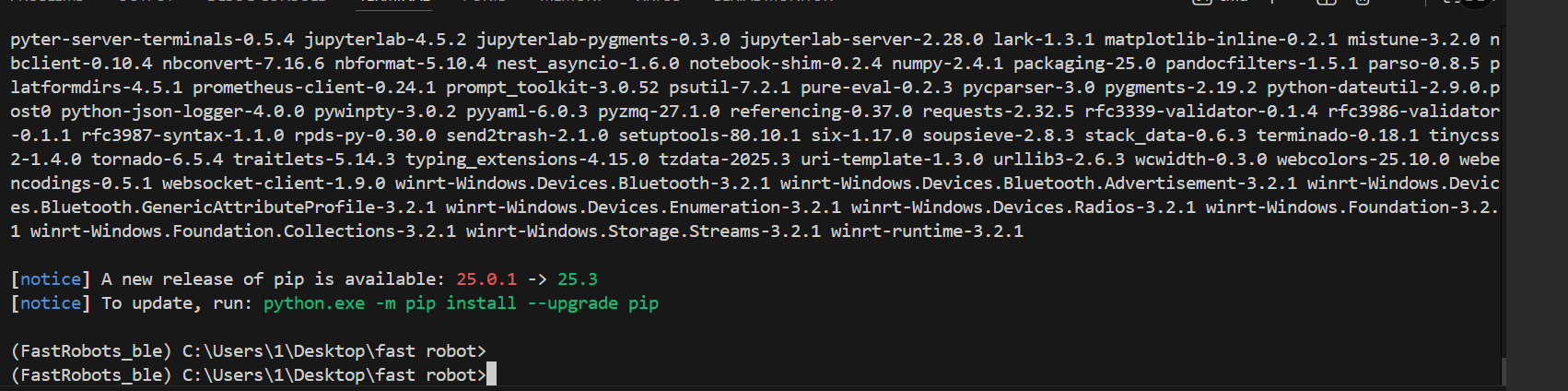

2. Computer Setup (Python + Virtual Environment).

   I installed Python version 3.13 and set up an isolated virtual environment for the lab to avoid dependency conflicts. After activating the environment, I installed the required packages and verified the environment for running the provided notebooks.



3. Lab Codebase Organization.

   Then I downloaded the provided Lab 1B codebase. The repository contains an Arduino sketch (ble_arduino) for the Artemis and a Python package/notebook (ble_python) used to connect, send commands, and log results from a Jupyter workflow.

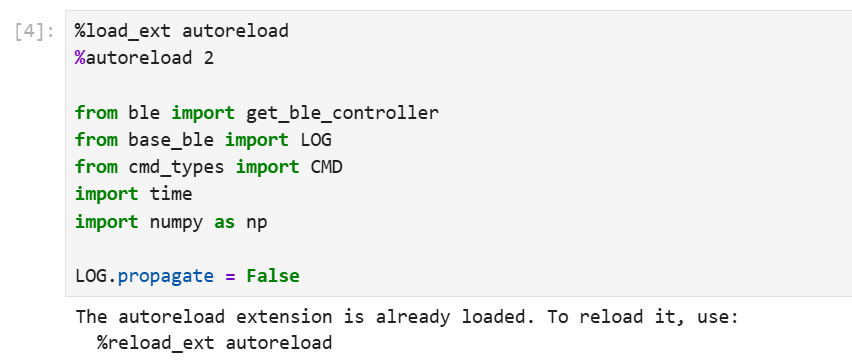

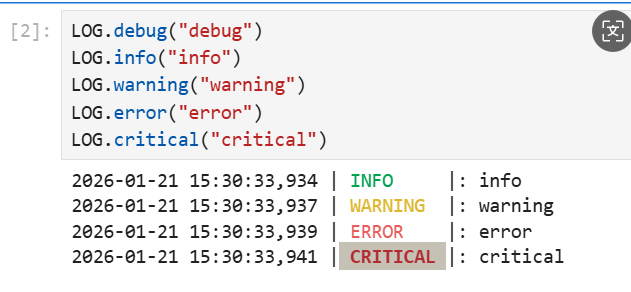

4. Jupyter Workflow

I started JupyterLab from the project directory with the virtual environment activated, ensuring the notebook server can access the lab files. The notebook is used as the primary interface to send BLE commands and observe responses.

Instructions

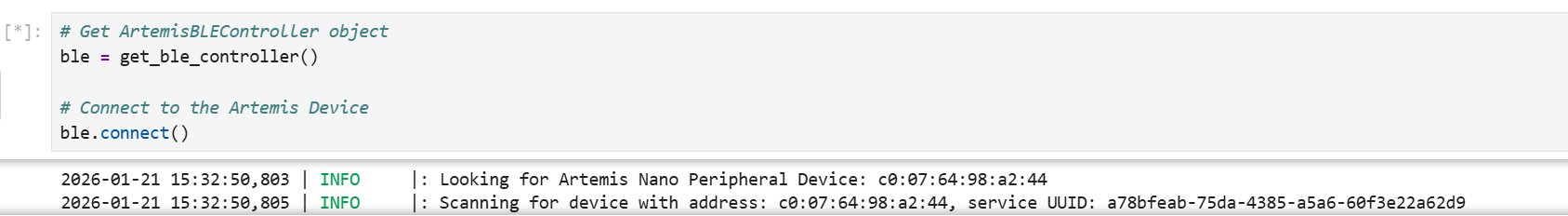

To prepare for Lab 1B, I first updated the Artemis board identifier on the computer by replacing the artemis_address field in connections.yaml with the MAC address printed by my Artemis (ensuring it is a valid 12-digit hexadecimal MAC, zero-padded if needed).

Next, I generated a new BLE service UUID (e.g., using uuid4()) to avoid accidentally connecting to a classmate’s board, and I updated this UUID consistently in both ble_arduino.ino (BLE_UUID_TEST_SERVICE) and connections.yaml (ble_service).

I then verified that all UUID definitions used by the Arduino sketch match those expected by the Python configuration file, and that the command IDs in the Arduino enum CommandTypes match the mapping in cmd_types.py. After these configuration updates, I re-flashed ble_arduino.ino onto the Artemis and ran the provided demo notebook in JupyterLab. The notebook successfully connected to my board and verified basic GATT reads (e.g., RX_FLOAT and RX_STRING), confirming the BLE pipeline was functional before starting the lab tasks.

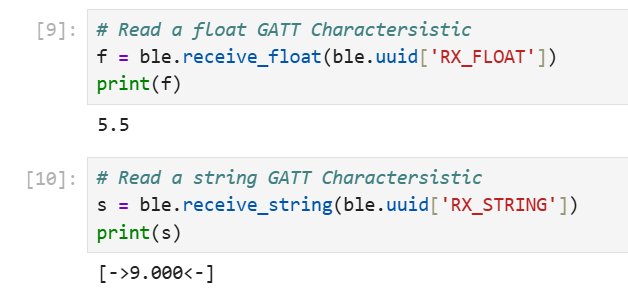

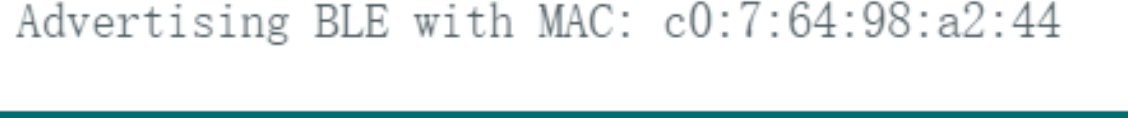

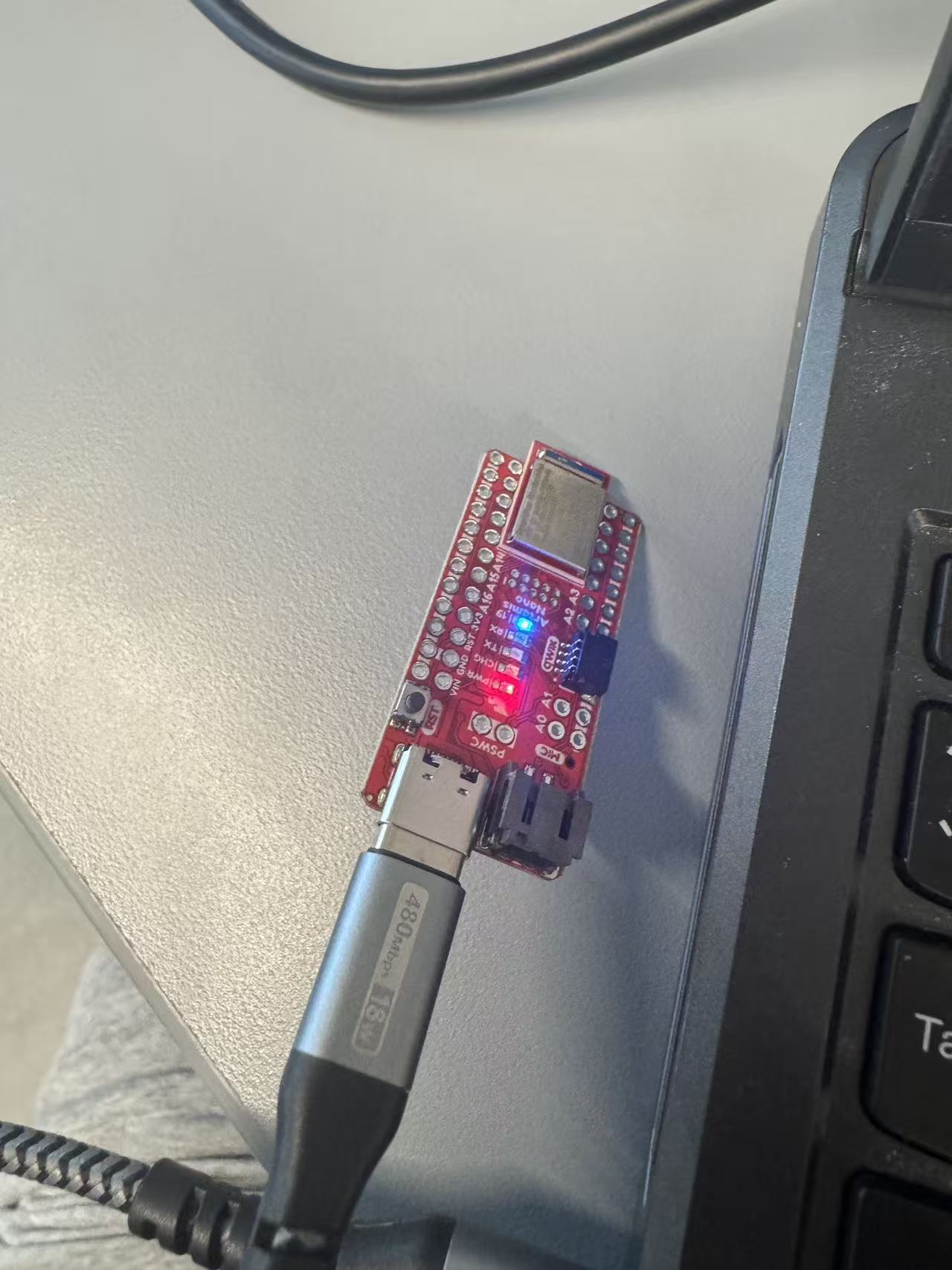

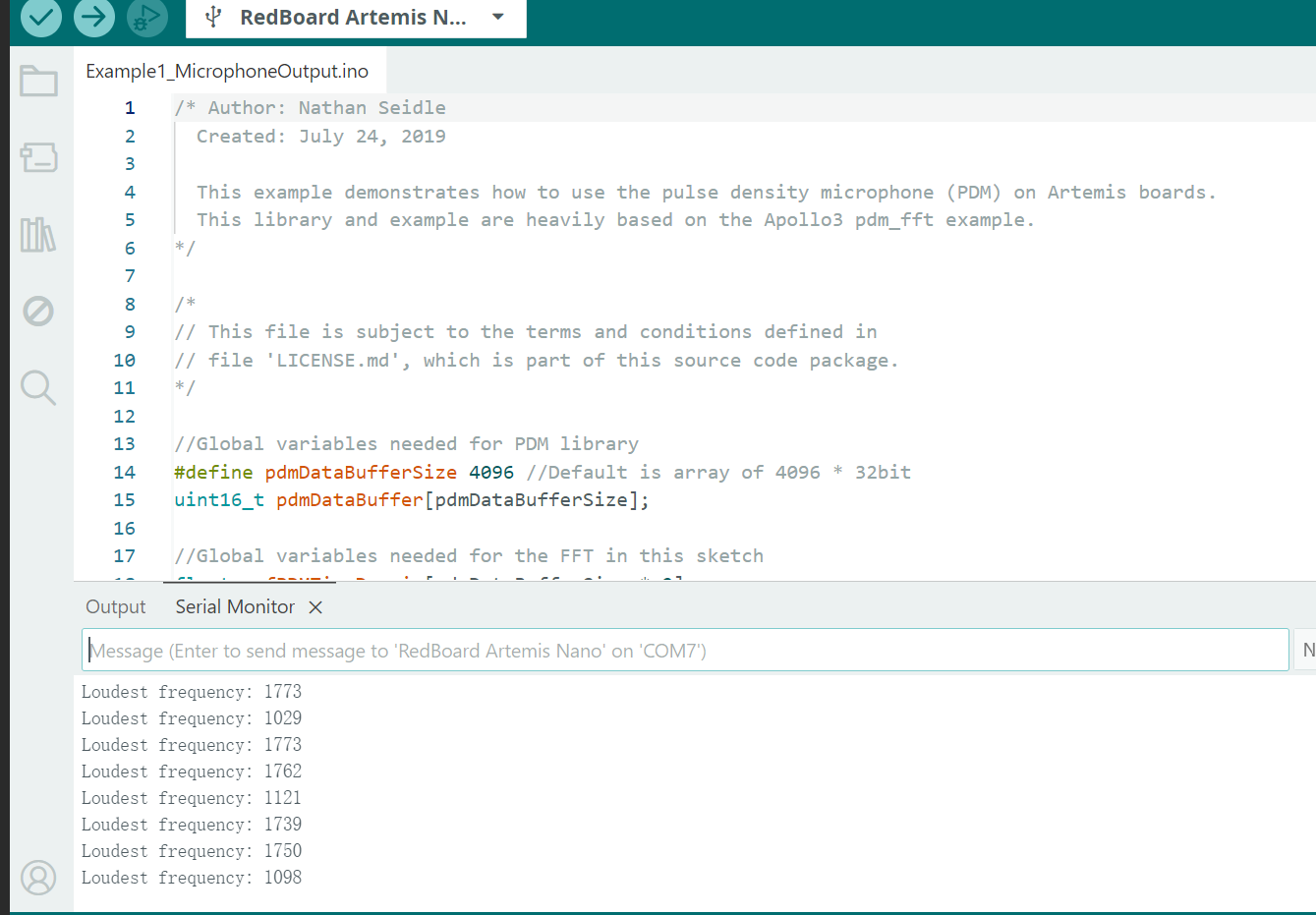

5. Artemis Board Setup (BLE Sketch + MAC Address)

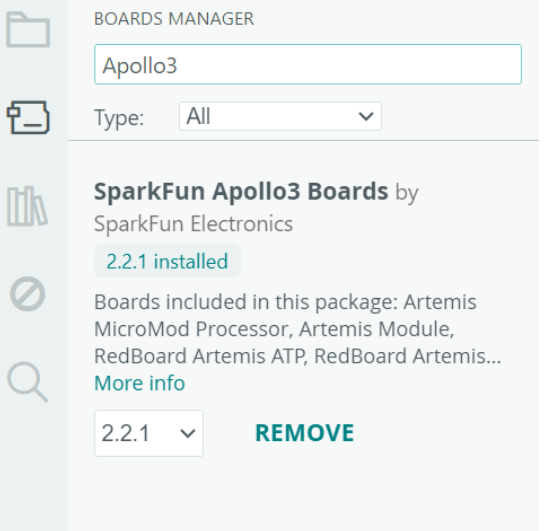

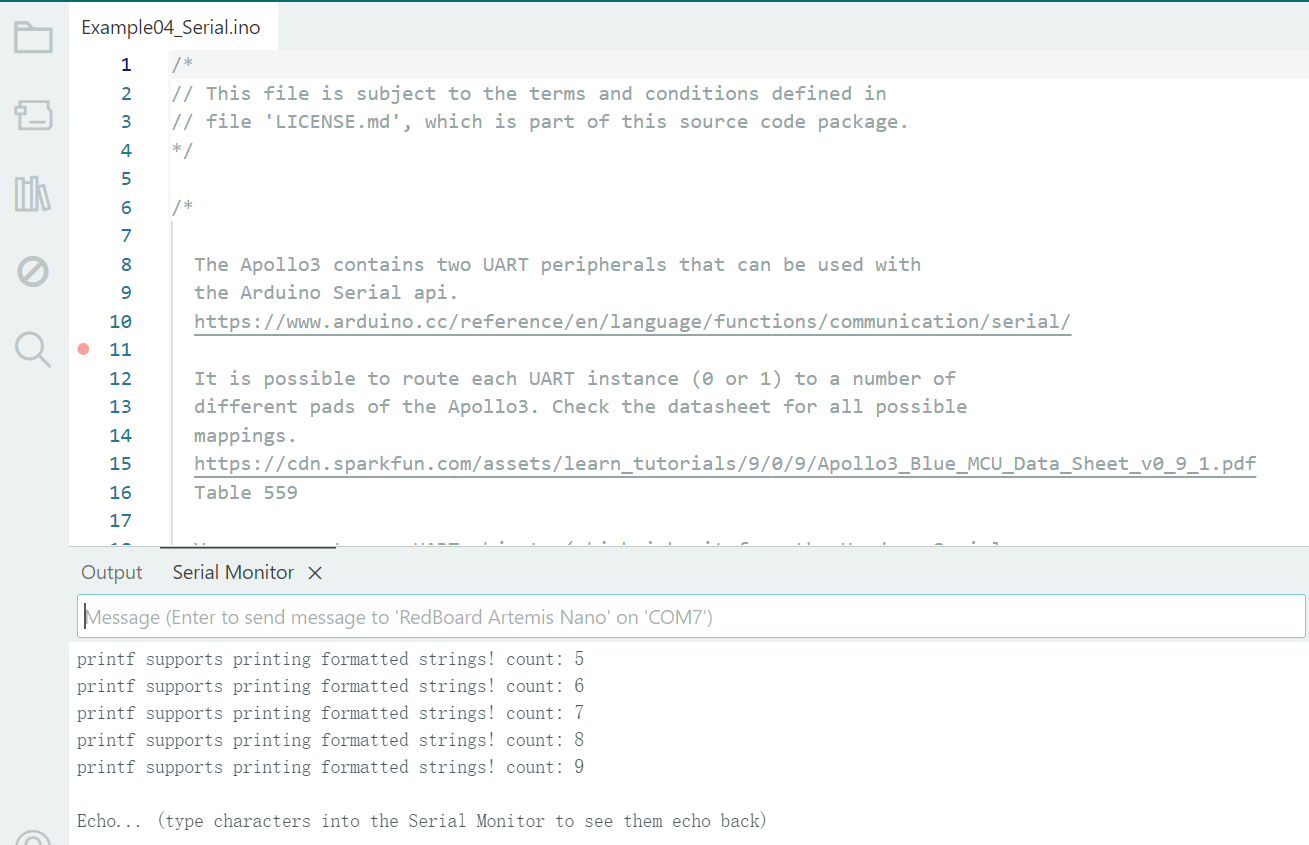

On the Artemis side, I installed the ArduinoBLE library, compiled and flashed the provided BLE sketch (ble_arduino.ino), and confirmed successful bring-up by printing the board’s BLE MAC address over serial (baud rate set to 115200).

Lab Tasks

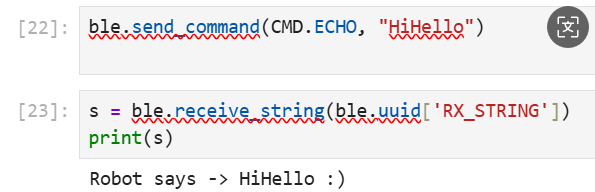

1. ECHO command (string round-trip).

   I sent a string from the laptop to the Artemis using ECHO, and verified the laptop receives and prints an augmented reply string from the Artemis.

   ble.send_command(CMD.ECHO, "HiHello")
   s = ble.receive_string(ble.uuid['RX_STRING'])
   print(s)

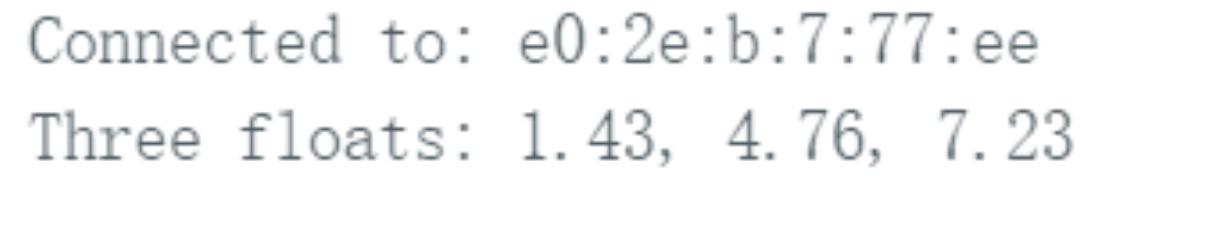

2. SEND_THREE_FLOATS (parse values on Arduino).

   I transmitted three float values from Python to the Artemis using SEND_THREE_FLOATS, then extracted and confirmed the three floats correctly in the Arduino sketch.

   ble.send_command(CMD.SEND_THREE_FLOATS, "1.43|4.76|7.23")

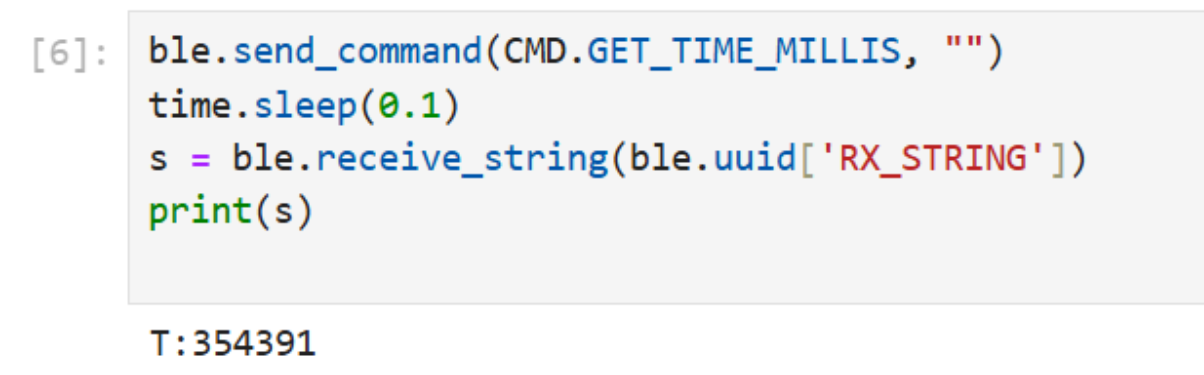

3. Implement GET_TIME_MILLIS (Arduino → laptop string).

   I added a new command GET_TIME_MILLIS so the Artemis replies with a formatted string T:354391 via the BLE string characteristic.

   ble.send_command(CMD.GET_TIME_MILLIS, "")
   time.sleep(0.1)
   s = ble.receive_string(ble.uuid['RX_STRING'])
   print(s)



4. Python notification handler (parse time).

   I registered a notification callback on the RX_STRING characteristic to handle incoming Artemis string notifications. The callback decodes the message, filters for the T:354391 format, and extracts the integer timestamp. To synchronize the asynchronous notification with the notebook cell, I used an asyncio.Event to block until the timestamp arrives (or times out), then printed the latest parsed value to confirm correct parsing.

   Code Snippet (core logic only)

   import asyncio

   state = {"time_ms": None}
   ev = asyncio.Event()

   def rx_string_cb(sender, data):
       msg = bytes(data).decode("utf-8", errors="ignore").strip("\x00").strip()
       if msg.startswith("T:"):
           state["time_ms"] = int(msg.split(":", 1)[1])
           print("time_ms =", state["time_ms"])
           ev.set()
       else:
           print("raw:", msg)

   uuid_rx = ble.uuid["RX_STRING"]
   uuid_tx_cmd = ble.uuid["TX_CMD_STRING"]

   try:
       await ble.device.client.stop_notify(uuid_rx)
   except:
       pass

   await ble.device.client.start_notify(uuid_rx, rx_string_cb)

   cmd_string = f"{CMD.GET_TIME_MILLIS.value}:"
   await ble.device.client.write_gatt_char(uuid_tx_cmd, cmd_string.encode("utf-8"), response=True)

   await asyncio.wait_for(ev.wait(), timeout=5.0)
   print("latest parsed =", state["time_ms"])

   Code Snippet (Gist)

   Open on GitHub Gist

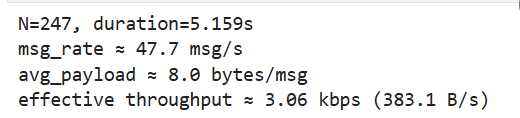

5. Measure message rate (stream time + compute throughput).

   I started a timed streaming loop on the Artemis (via START_TIME_STREAM) which periodically sent timestamp notifications to the laptop. On the Python side, I registered a notification callback and counted the number of received timestamps over a measured duration, then computed the average message rate and effective throughput based on the timestamp payload size. In this run, the link achieved approximately 47.7 msg/s and an effective throughput of about 3.06 kbps.

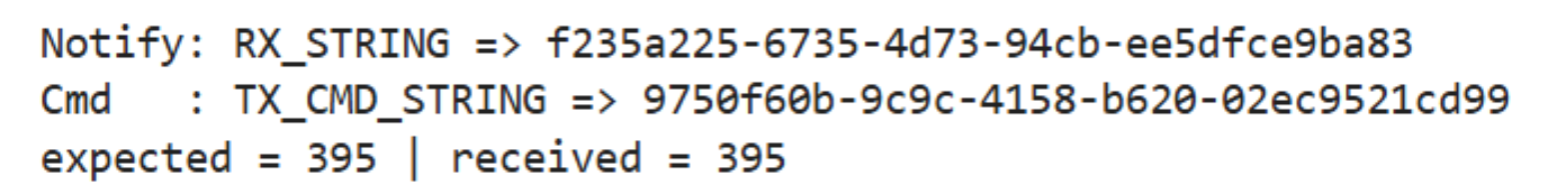

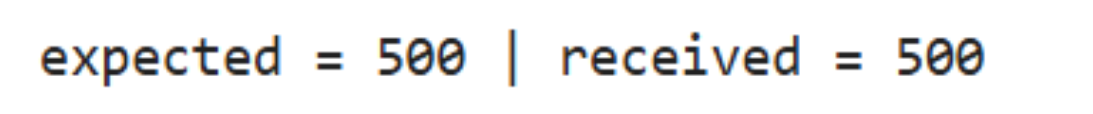

6. Buffered timestamp array + SEND_TIME_DATA.

   Instead of sending each timestamp immediately, I stored timestamps in a global array on the Artemis and implemented SEND_TIME_DATA to transmit the stored timestamps afterward, verifying all data arrives on the laptop.



Code Snippet(only demonstrate core code)

Code Snippet (core logic only)

import asyncio, time

async def task6_collect(duration_s=5.0):
    rx_uuid = ble.uuid["RX_STRING"]
    tx_cmd_uuid = ble.uuid["TX_CMD_STRING"]

    vals = []
    expected = None

    def cb(sender, raw):
        nonlocal expected
        msg = bytes(raw).decode("utf-8", errors="ignore").strip("\x00").strip()
        if not msg:
            return
        if msg.startswith("N:"):
            try:
                expected = int(msg.split(":", 1)[1])
            except:
                pass
            return
        if msg.startswith("T:"):
            try:
                vals.append(int(msg.split(":", 1)[1]))
            except:
                pass

    try:
        await ble.device.client.stop_notify(rx_uuid)
    except:
        pass
    await ble.device.client.start_notify(rx_uuid, cb)

    await ble.device.client.write_gatt_char(tx_cmd_uuid, f"{CMD.START_TIME_STREAM.value}:".encode(), response=True)
    await asyncio.sleep(duration_s)
    await ble.device.client.write_gatt_char(tx_cmd_uuid, f"{CMD.STOP_TIME_STREAM.value}:".encode(), response=True)
    await asyncio.sleep(0.1)

    vals.clear()
    expected = None
    await ble.device.client.write_gatt_char(tx_cmd_uuid, f"{CMD.SEND_TIME_DATA.value}:".encode(), response=True)

    t0 = time.time()
    while time.time() - t0 < 30.0:
        if expected is not None and len(vals) >= expected:
            break
        await asyncio.sleep(0.05)

    await ble.device.client.stop_notify(rx_uuid)
    return vals, expected

vals, expected = await task6_collect(5.0)
print("expected =", expected, "| received =", len(vals))

Open full code on GitHub Gist

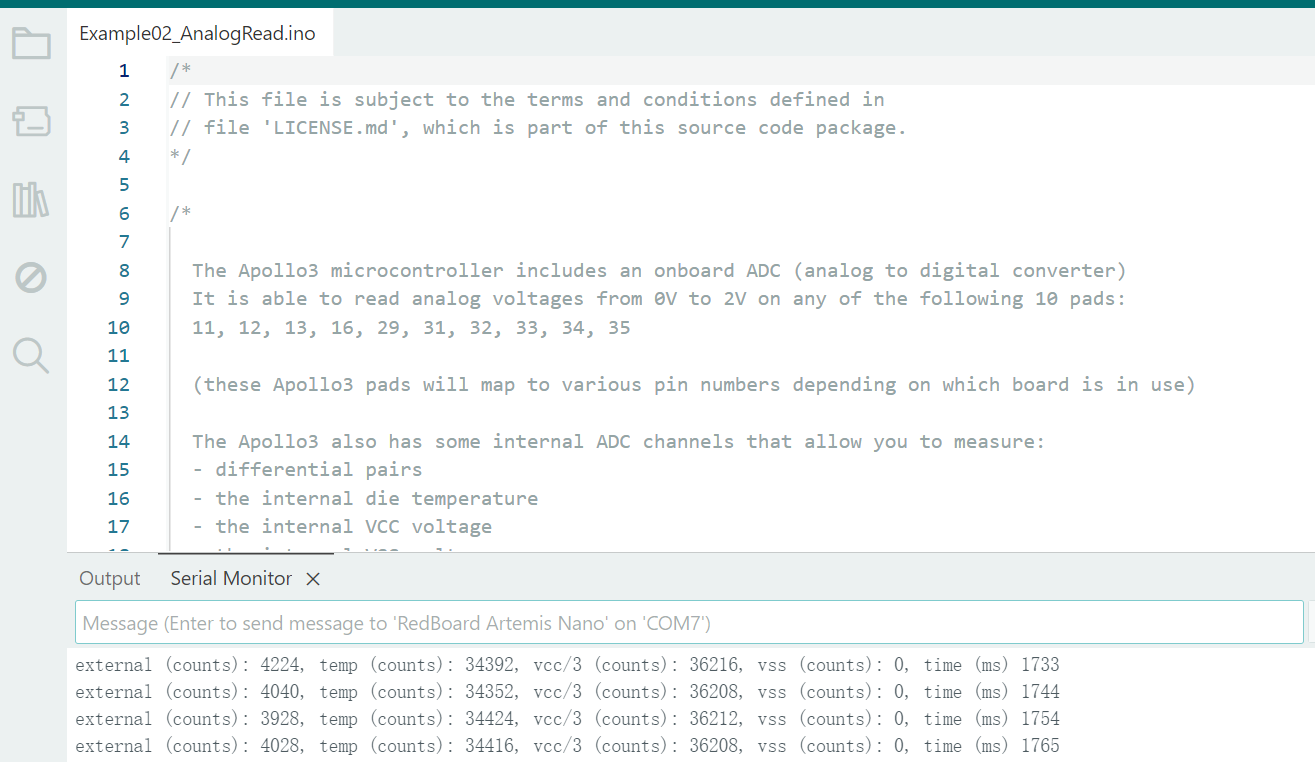

7. Paired time + temperature arrays + GET_TEMP_READINGS.

   I recorded temperature readings alongside timestamps in a second array of equal length; implemented GET_TEMP_READINGS to send paired (time, temperature) data; and parsed/stored them into two Python lists via the notification handler.



Code Snippet(only demonstrate core code)

import asyncio, time, re

TX_STRING_UUID = "f235a225-6735-4d73-94cb-ee5dfce9ba83".lower()

def _find_uuid_by_value(target_uuid_lower: str):
    for k, v in ble.uuid.items():
        if str(v).lower() == target_uuid_lower:
            return k, v
    return None, None

async def task7_core(duration_s=2.0, timeout_s=8.0):
    _, notify_uuid = _find_uuid_by_value(TX_STRING_UUID)
    tx_cmd_uuid = ble.uuid["TX_CMD_STRING"]

    time_list, temp_list = [], []
    expected = None

    def cb(sender, raw):
        nonlocal expected
        msg = bytes(raw).decode("utf-8", errors="ignore").strip("\x00").strip()
        if not msg:
            return

        if msg.startswith("N:"):
            try:
                expected = int(msg.split(":", 1)[1])
            except:
                pass
            return

        mt = re.search(r"T:(\d+)", msg)
        mc = re.search(r"C:([-+]?\d+(?:\.\d+)?)", msg)
        if mt and mc:
            time_list.append(int(mt.group(1)))
            temp_list.append(float(mc.group(1)))

    await ble.device.client.start_notify(notify_uuid, cb)

    await ble.device.client.write_gatt_char(
        tx_cmd_uuid, f"{CMD.START_TIME_STREAM.value}:".encode(), response=False
    )
    await asyncio.sleep(duration_s)
    await ble.device.client.write_gatt_char(
        tx_cmd_uuid, f"{CMD.STOP_TIME_STREAM.value}:".encode(), response=False
    )
    await asyncio.sleep(0.1)

    time_list.clear(); temp_list.clear(); expected = None
    await ble.device.client.write_gatt_char(
        tx_cmd_uuid, f"{CMD.GET_TEMP_READINGS.value}:".encode(), response=False
    )

    t0 = time.time()
    while time.time() - t0 < timeout_s:
        if expected is not None and len(time_list) >= expected:
            break
        await asyncio.sleep(0.02)

    await ble.device.client.stop_notify(notify_uuid)
    return time_list, temp_list

Open full code on GitHub Gist

8. Differences between the two methods.

   The two approaches differ in where the bottleneck occurs. In Method 1 (streaming each sample immediately over BLE), the Artemis sends each timestamp/reading as soon as it is generated, enabling near real-time monitoring and simple implementation. However, the effective rate is limited by BLE throughput, notification overhead, and Python-side handling, so messages can be delayed or dropped when the send rate is too high.

   In Method 2 (buffer locally, then transmit later), the Artemis records data into arrays in RAM and only sends the stored data on demand. This decouples sampling from BLE communication, allowing the board to record faster and more consistently, which limited mainly by the sensor read time and the loop period, but it is not real-time and is constrained by available RAM; data can also be lost if the board resets before uploading.

   In practice, Method 2 can avoid BLE transactions during acquisition. The storage capacity is bounded by RAM: the Artemis has 384 kB (≈ 393,216 bytes) of RAM, but not all of it is available for user buffers. If timestamps are stored as uint32_t (4 bytes) and temperatures are stored as float(4 bytes), each paired sample is 8 bytes, so a practical upper bound is on the order of ~30k–35k (time, temp) samples without risking memory pressure (similar reasoning applies if only timestamps are stored).

Additional Tasks (5000-level)

In this section, I evaluated the BLE communication performance between the laptop (BLE central) and the Artemis board (BLE peripheral). The experiments focus on (1) effective data rate and protocol overhead under different reply payload sizes, and (2) reliability when increasing the Artemis-to-laptop streaming rate.

1) Effective Data Rate and Overhead

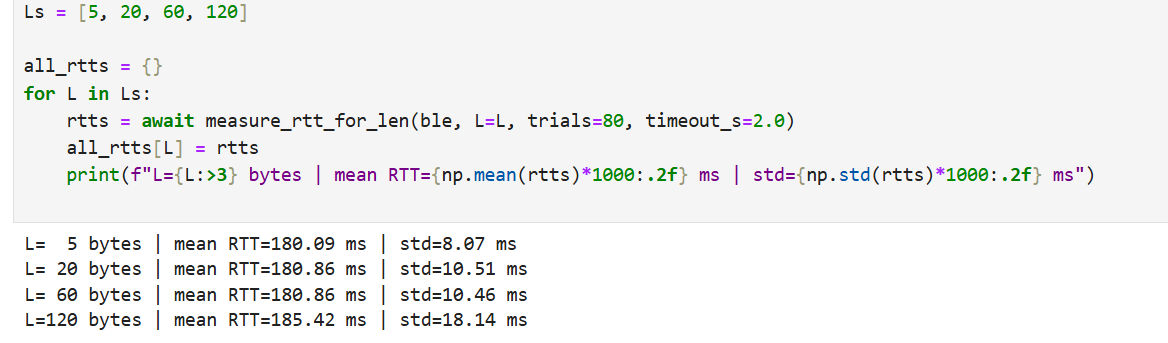

I measured the end-to-end round-trip time (RTT) for a request–reply exchange while varying the reply payload length (e.g., 5 bytes and 120 bytes). Using the measured RTT, I computed the effective data rate as payload_size / RTT. This quantifies how much useful throughput is achieved after accounting for BLE/GATT overhead, and helps answer whether many short packets incur disproportionately high overhead compared to fewer larger replies.

Method

• For each reply length, run multiple trials to obtain a stable mean RTT (and optionally standard deviation).
• Compute effective data rate using the reply payload length divided by mean RTT.
• Summarize results with at least one plot (effective rate vs reply size; optionally RTT vs reply size).

Code Snippet

Ls = [5, 20, 60, 120]

all_rtts = {}
for L in Ls:
    rtts = await measure_rtt_for_len(ble, L=L, trials=80, timeout_s=2.0)
    all_rtts[L] = rtts
    print(f"L={L:>3} bytes | mean RTT={np.mean(rtts)*1000:.2f} ms | std={np.std(rtts)*1000:.2f} ms")



def eff_rate_kbps(L, rtts):
    m = float(np.mean(rtts))
    return (8.0 * L / m) / 1000.0  # kbps

rates = [eff_rate_kbps(L, all_rtts[L]) for L in Ls]
mean_rtt_ms = [float(np.mean(all_rtts[L]) * 1000.0) for L in Ls]

print("\nEffective data rates:")
for L, r in zip(Ls, rates):
    print(f"  L={L:>3} bytes -> {r:.2f} kbps")

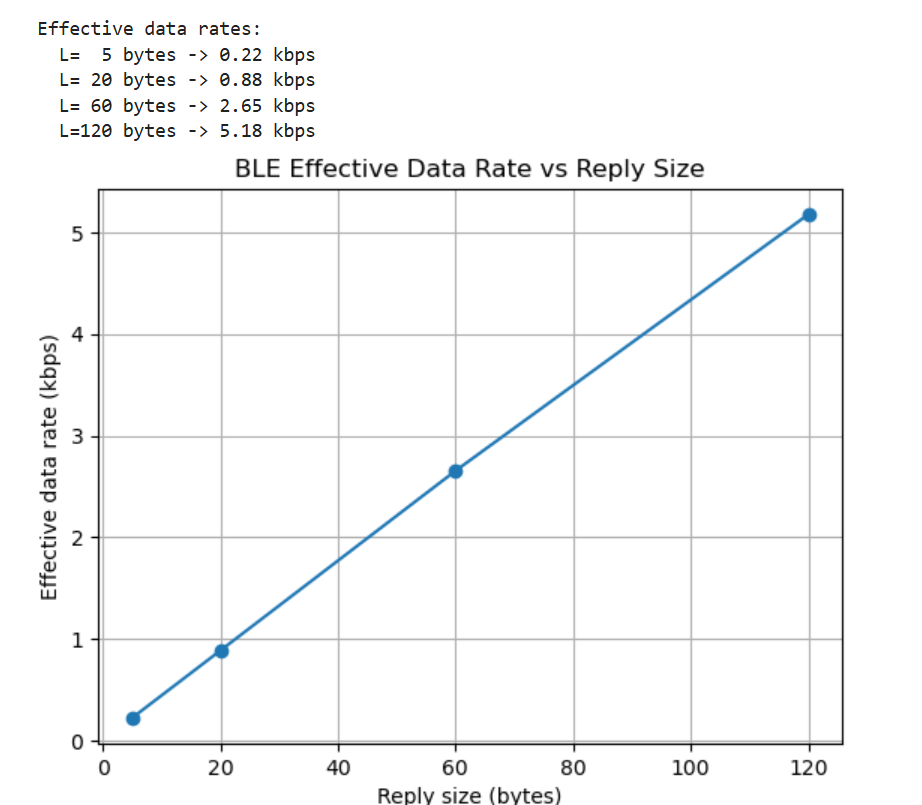

# Plot 1: reply size vs effective data rate
plt.figure()
plt.plot(Ls, rates, marker='o')
plt.xlabel("Reply size (bytes)")
plt.ylabel("Effective data rate (kbps)")
plt.title("BLE Effective Data Rate vs Reply Size")
plt.grid(True)
plt.show()

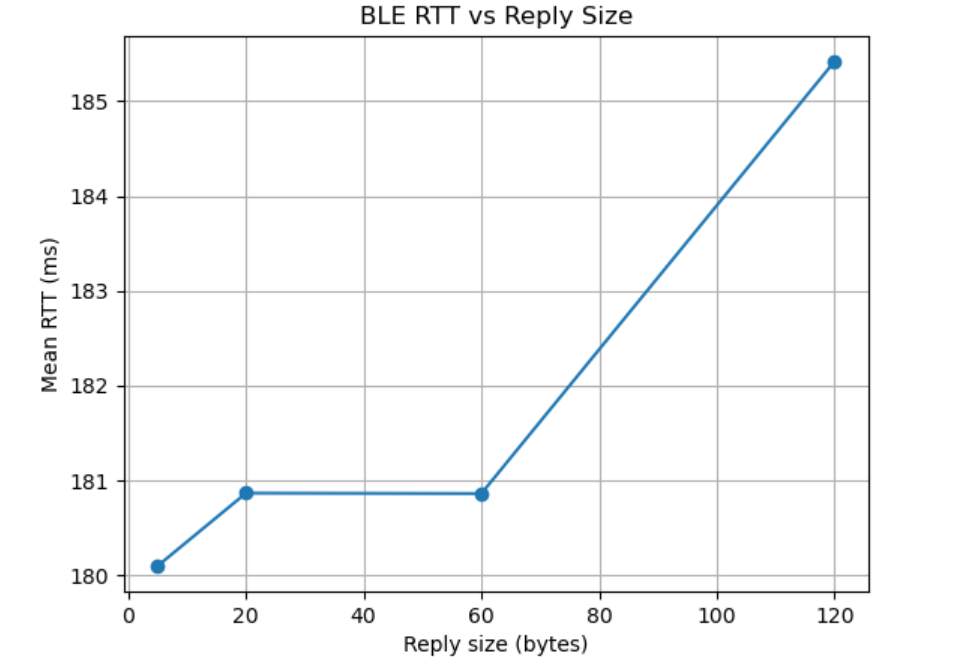

# Plot 2: reply size vs RTT
plt.figure()
plt.plot(Ls, mean_rtt_ms, marker='o')

plt.xlabel("Reply size (bytes)")
plt.ylabel("Mean RTT (ms)")
plt.title("BLE RTT vs Reply Size")
plt.grid(True)
plt.show()





Observation

Overall, larger replies improve the useful throughput because a greater fraction of the transmission is payload rather than fixed protocol overhead. In contrast, very short replies suffer from overhead dominance: even if RTT is similar, the delivered payload per exchange is small, resulting in a lower effective data rate.

2) Reliability at Higher Streaming Rates

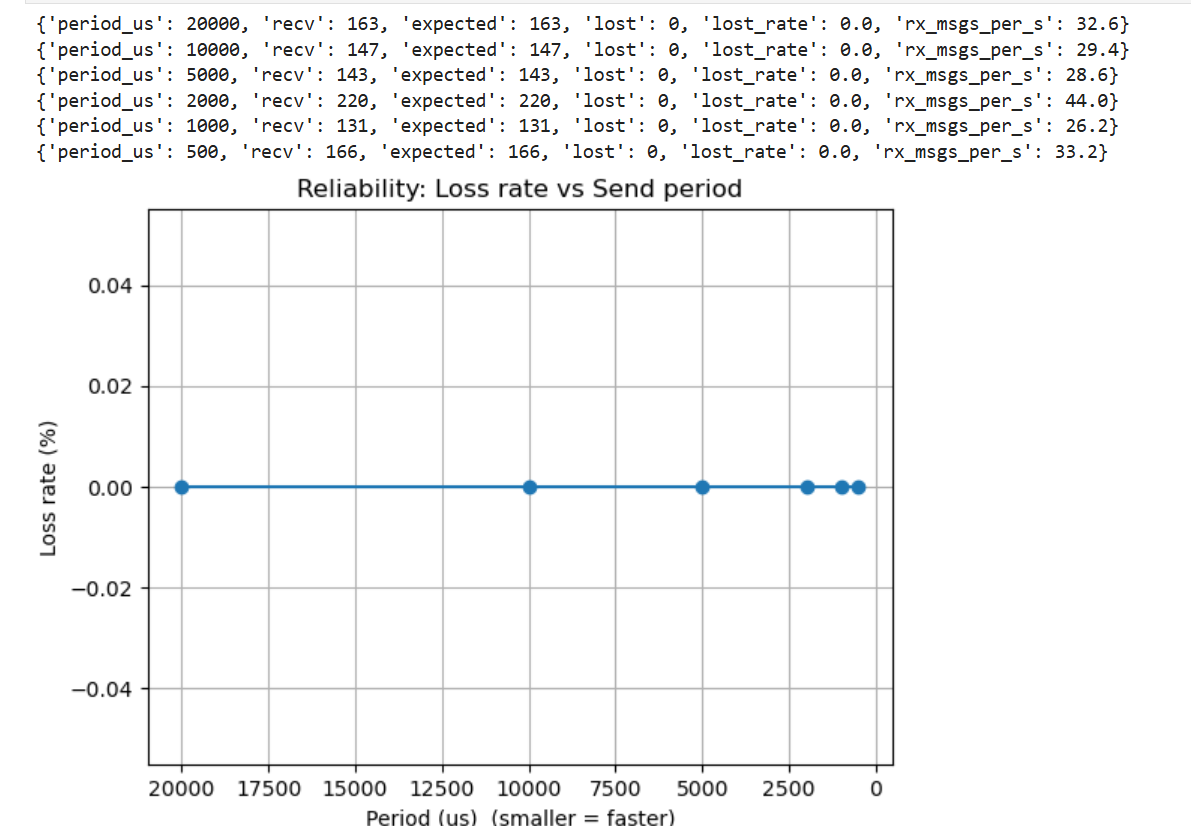

Next, I tested reliability by increasing the Artemis-to-laptop publish rate and checking whether the laptop receives all transmitted messages without loss. I used a notification callback to count received packets and compared the received count against the expected count (and/or sequence continuity when available). This reveals the onset of packet drops, delayed notifications, or instability as the streaming period becomes smaller (i.e., faster).

Code Snippet

periods_us = [20000, 10000, 5000, 2000, 1000, 500]  # 50Hz -> 2000Hz
results = []

for p in periods_us:
    res = await reliability_test_harduuid(ble, period_us=p, duration_s=5.0)
    results.append(res)
    print(res)

xs = [r["period_us"] for r in results if r["lost_rate"] is not None]
ys = [100.0 * r["lost_rate"] for r in results if r["lost_rate"] is not None]

plt.figure()
plt.plot(xs, ys, marker='o')
plt.gca().invert_xaxis()
plt.xlabel("Period (us)  (smaller = faster)")
plt.ylabel("Loss rate (%)")
plt.title("Reliability: Loss rate vs Send period")
plt.grid(True)
plt.show()



As the send period decreases, the system may eventually become limited by BLE notification throughput and host-side processing/scheduling. When the rate exceeds what the link can sustain, symptoms typically include missing packets, delayed arrivals, or increasing jitter. In the stable region, expected and received counts match closely, indicating reliable delivery at that operating point.

Appendix

1. An announcement of AI usage

I used AI tools to support parts of this lab, mainly for webpage/HTML formatting, minor code edits and debugging, and polishing the written explanations for clarity and conciseness. Throughout the assignment, I verified the suggestions against the lab requirements, tested changes on my own setup, and made final design and implementation decisions independently based on my own understanding.

2. Core Arduino code

Arduino code (GitHub Gist)
